Product details

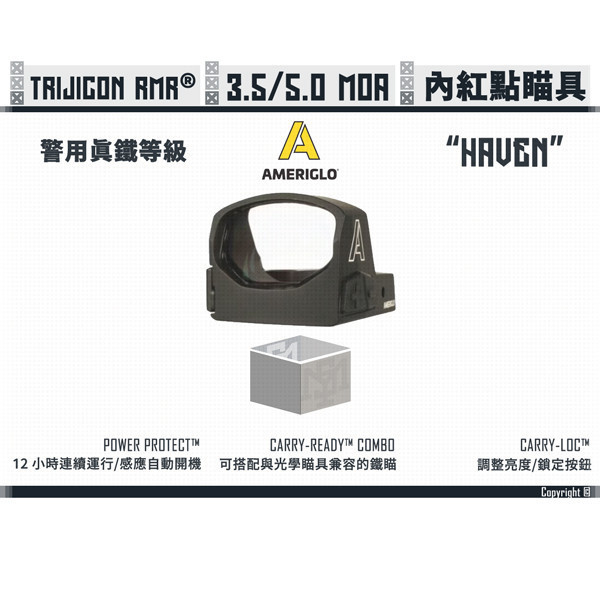

HAVEN HANDGUN RED DOT SIGHTS
The AMERIGLO Haven® is designed for everyday reliability, for everyday carry, in any environment. Defending your family and your home requires 24/7 reliability, immediate target acquisition, intuitive controls, and innovative electronics you can trust to work every time.
The HAVEN® is guaranteed to survive continuous firing and recoil from today’s harshest handguns and is compatible with today’s most common IWB/OWB holsters. Ready for immediate install on today’s most popular optics-ready pistols, the HAVEN® uses the Trijicon RMR® footprint. Its smart electronics offer a 12-hour runtime followed by a 12-hour, motion-activated auto-on. 2-year battery life on a mid-setting with a common CR2032 battery. Also available with optional iron sights as a Carry-Ready™ Combo.

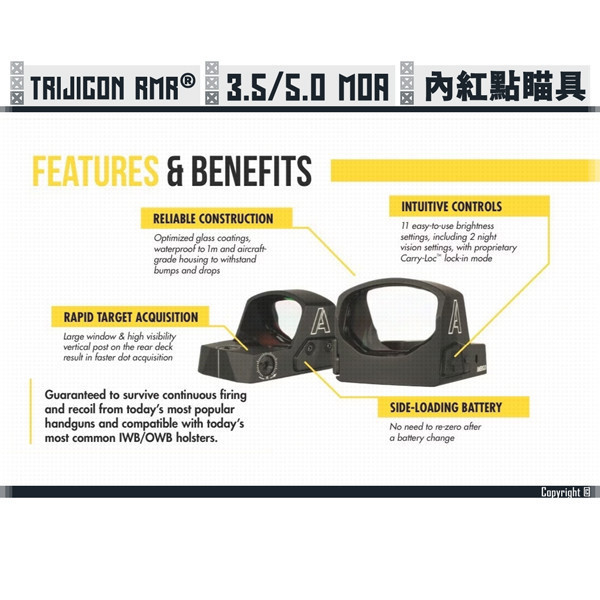

FEATURES:
SIDE-LOADING BATTERY
No need to re-zero after a battery change
INTUITIVE CONTROLS
11 easy-to-use brightness settings, with proprietary Carry-Loc™ “lock-in” mode
RELIABLE CONSTRUCTION
Optimized glass coatings, waterproof to 1m and aircraft-grade housing to withstand bumps and drops

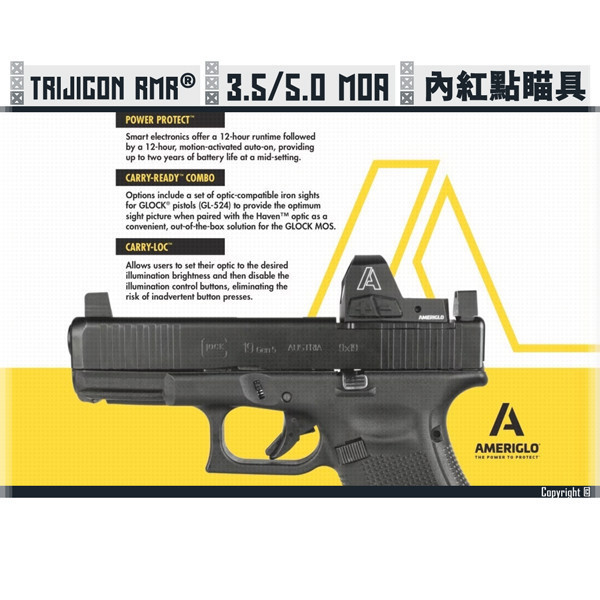

POWER PROTECT™
Smart electronics offer 12-hour runtime and 12-hour, motion activated auto-on providing up to two years of battery life at a mid-setting
INDUSTRY STANDARD FOOTPRINT
Uses the Trijicon RMR® footprint for easy mounting on most optics-ready handguns
PERFECT ZERO ADJUSTERS
AMERIGLO Haven® is designed with precision-engineered elevation and windage adjusters
RAPID TARGET ACQUISITION
Large window & high visibility vertical post on the rear deck result in faster dot acquisition
INCLUDED IN BOX:
Haven Optic
CR2032 Battery (installed)
Optic Fasteners
T10 / T6 Torx Tool
Quick Reference Guide
AMERIGLO Sticker

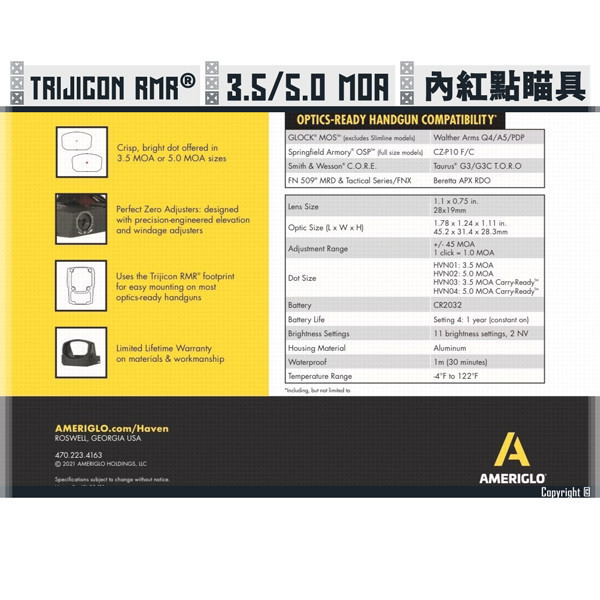

SPECIFICATIONS:
Dimensions: 1.78 in x 1.24 in x 1.11 in (45.21mm x 31.5mm x 28.19mm)
Adjustment: 1 click = 1.0MOA
Adjustment Range: +/- 45 MOA
Operating Temperature: -4 F to 122F (-20c to 50c)
Submersion Depth: 3.28 ft. (1m)
Housing Material: Aluminum
Housing Finish: Matte Black
Magnification: 1x
Reticle Pattern: 3.5 MOA Dot
Day Reticle Color: Red
Night Reticle Color: Red
Illumination Source: LED
Illumination Settings: 11 settings, 2 NV settings
Power Source: CR2032 Battery
Battery Life: 1 year on setting 4 (constant on)
Dot Size:
HVN01: 3.5 MOA
HVN02: 5.0 MOA
HVN03: 3.5 MOA Carry-ReadyTM
HVN04: 5.0 MOA Carry-ReadyTM
