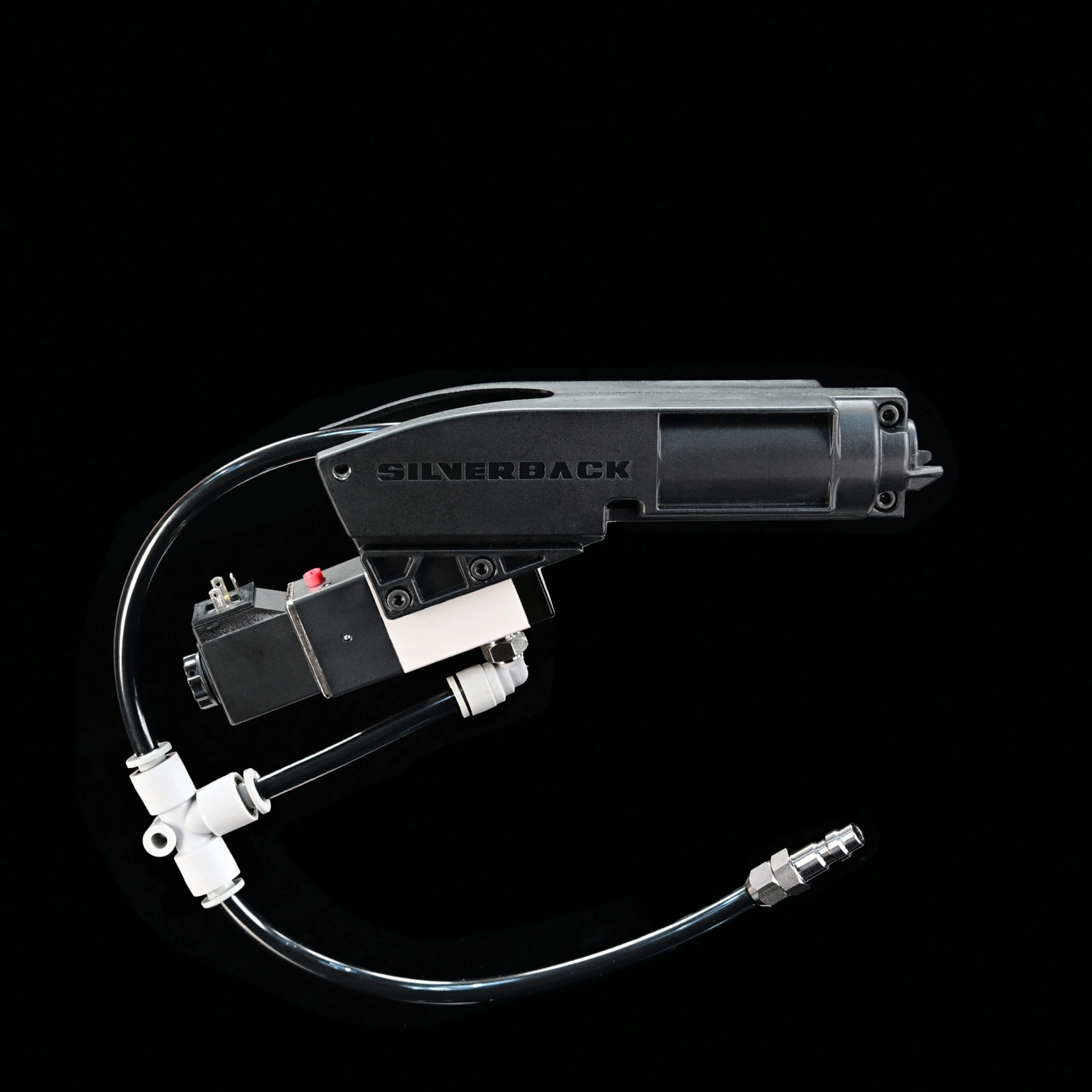

Silverback MDRX HPA 高壓氣動轉換套件

中文

商品特色

MDRX AEG 專用 HPA 轉換套件
Silverback MDRX HPA Conversion Kit 可將 MDRX AEG 轉換為 Electro-Pneumatic 電控氣動 HPA 系統。

工業級 Solenoid Valve 架構
HPA Engine 採用 Industrial-Grade 3V110-06 NCF 3/2 Solenoid Valve，工作電壓為 12V DC。

此系統的推進氣流不會通過 Solenoid Valve 本身，Solenoid Valve 僅負責控制 Nozzle 動作：
- 通電時，氣壓將 Nozzle 向前推並將 BB 送入膛室
- Nozzle 到位後，氣流直接經由 Nozzle 本體加工的氣孔推動 BB

Nozzle 完全由氣壓驅動，沒有 Return Spring，整個氣動機構僅有一個主要活動零件。

精簡氣動結構
原廠 HPA 氣動總成僅包含：
- 4 個主要零件
- 5 個 Seal
- 其中 3 個為 Dynamic FKM／Viton Seal

Nozzle 採 POM 製作，以降低摩擦、降低重量並減少對 BB 的損傷。

工作壓力
系統工作壓力範圍：
- 4–8 bar
- 約 58–116 PSI

Silverback 表示較佳的精準度與一致性通常出現在：
- 4.5–6.5 bar
- 約 65–94 PSI

Nozzle 配置
系統共有三種 Nozzle 配置：

1-Hole Nozzle
- 原廠建議用於低於 1 Joule 配置

2-Hole Nozzle
- 原廠建議用於 1–1.4 Joule 配置
- HPA Conversion Kit 內含一支作為備用

6-Hole／Full Flow Nozzle
- 原廠建議用於高於 1.4 Joule 配置
- HPA Conversion Kit 出廠預裝

射速能力
依 Silverback 官方資料：
- 可達約 40 BBs/s
- 經進階調整及較高工作壓力可達約 50 BBs/s

HPA 專用 Hop-Up
套件包含 MDRX HPA 專用 Hop-Up Chamber。

內建 Feeder 可將 BB 直接導向 Nozzle 前端，HPA Engine 與 Hop-Up Chamber 亦採自行對位設計。

Hop-Up Chamber 可使用標準 AEG-Type Hop-Up Bucking，但 Silverback 建議使用 SRS／TAC-41 Type Bucking，以取得較佳氣密表現。

套件隨附 Silverback SRS 80° Hop-Up Rubber。

FCU 電控系統
FCU 由 Silverback 與 T238 合作開發，可調整：

- Fire Mode：Safe／Semi／3–5 BB Burst／Full Auto／Binary
- Dwell：0.5ms 單位調整
- ROF：12–50 BBs/s
- DMR Cool-Down Timer：0.5–5 秒或關閉
- Battery Protection：3.3–3.0V／Cell 或關閉
- Sleep Timer：1–10 小時或關閉

其他 FCU 功能：
- Current Program Readback
- Total BB Counter
- Daily BB Counter
- Factory Reset
- Daily Counter Reset

氣源消耗
原廠表示在最佳條件下，使用：
- 0.8L／48ci 氣瓶
- 207 bar／3000 PSI

約可射擊：
- 2000–2500 發

實際表現會依壓力、Nozzle、BB 與設定而異。

電池需求
系統需要：
- 11.1V LiPo Stick Battery

原廠表示 1200mAh 電池通常足以使用數瓶 HPA 氣瓶。

套件內容
- MDRX HPA Engine
- 2 × M4×12 ISO14581 Mounting Screws
- HPA Airline with Male PCP Fitting
- FCU and Wiring Set
- MDRX HPA Hop-Up Chamber
- Silverback SRS／TAC-41 80° Hop-Up Rubber
- 6-Hole／Full Flow Nozzle，出廠預裝
- 2-Hole Nozzle，備用

商品規格
- 品牌：Silverback Airsoft
- 商品名稱：MDRX HPA Conversion Kit
- 適用平台：MDRX AEG
- 系統類型：Electro-Pneumatic HPA
- Solenoid Valve：3V110-06 NCF 3/2
- Solenoid 工作電壓：12V DC
- 工作壓力：4–8 bar／58–116 PSI
- 原廠建議壓力區間：4.5–6.5 bar／65–94 PSI
- 電池：11.1V LiPo Stick Battery
- 原廠料號／SKU：SBA-HPA-01

相容性
- Silverback MDRX AEG
- 專用 MDRX HPA Hop-Up Chamber
- Hop-Up Chamber 可使用標準 AEG-Type Hop-Up Bucking
- Silverback 建議搭配 SRS／TAC-41 Type Bucking

注意事項
- 使用者須遵守所在地 Airsoft 槍口能量與相關法規。
- 1-Hole、2-Hole 與 6-Hole／Full Flow Nozzle 有不同原廠建議能量範圍。
- 實際射速、耗氣量與性能會受到工作壓力、Nozzle、BB、FCU 設定與其他系統條件影響。

English

Features

MDRX AEG to HPA Conversion
The Silverback MDRX HPA Conversion Kit converts an MDRX AEG into an electro-pneumatic HPA system.

Industrial-Grade Solenoid Architecture
The HPA engine is based on an industrial-grade 3V110-06 NCF 3/2 solenoid valve powered by 12V DC.

Propulsion airflow does not pass through the solenoid valve itself. The valve controls nozzle movement, while propulsion air flows directly through ports machined into the nozzle.

The nozzle is entirely pressure-driven, uses no return spring, and the pneumatic assembly contains only one main moving part.

Pneumatic Assembly
- 4 main parts
- 5 seals
- 3 dynamic FKM/Viton seals
- POM nozzle

Operating Pressure
- Operating Range: 4–8 bar / 58–116 PSI
- Recommended Accuracy and Consistency Range: 4.5–6.5 bar / 65–94 PSI

Nozzle Configurations

1-Hole Nozzle
- Optimized for sub-1 Joule configurations

2-Hole Nozzle
- Recommended for 1–1.4 Joule configurations
- Included as a spare part

6-Hole / Full Flow Nozzle
- Recommended for configurations above 1.4 Joules
- Pre-installed in the conversion kit

Rate of Fire
According to Silverback:
- Up to approximately 40 BBs/s
- Up to approximately 50 BBs/s with advanced tuning and higher operating pressures

HPA-Specific Hop-Up
The kit includes a dedicated MDRX HPA hop-up chamber with a built-in feeder and self-aligning interface between the HPA engine and hop-up chamber.

The chamber accepts standard AEG-type hop-up buckings. Silverback recommends SRS/TAC-41 type buckings for optimal air seal performance.

A Silverback SRS/TAC-41 80° hop-up rubber is included.

Fire Control Unit
Developed in collaboration with T238, the FCU allows adjustment of:
- Fire Modes: Safe / Semi / 3–5 BB Burst / Full Auto / Binary
- Dwell: 0.5 ms increments
- ROF: 12–50 BBs/s
- DMR Cool-Down Timer: 0.5–5 s or disabled
- Battery Protection: 3.3–3.0 V/cell or disabled
- Sleep Timer: 1–10 h or disabled

Additional FCU functions include:
- Current Program Readback
- Total BB Counter
- Daily BB Counter
- Factory Reset
- Daily Counter Reset

Air Consumption
Under optimal conditions, Silverback states approximately 2000–2500 shots can be achieved with:
- 0.8 L / 48 ci air tank
- 207 bar / 3000 PSI fill pressure

Battery Requirement
- 11.1V LiPo stick battery
- A 1200mAh battery will typically last through several air tanks

Package Contents
- MDRX HPA Engine
- 2 × M4×12 ISO14581 mounting screws
- HPA airline with male PCP fitting
- FCU and wiring set
- MDRX HPA hop-up chamber
- Silverback SRS/TAC-41 80° hop-up rubber
- 6-hole / Full Flow nozzle pre-installed
- 2-hole nozzle included as a spare

Specifications
- Brand: Silverback Airsoft
- Product: MDRX HPA Conversion Kit
- Platform: MDRX AEG
- System: Electro-Pneumatic HPA
- Solenoid Valve: 3V110-06 NCF 3/2
- Solenoid Voltage: 12V DC
- Operating Pressure: 4–8 bar / 58–116 PSI
- Recommended Pressure Range: 4.5–6.5 bar / 65–94 PSI
- Battery: 11.1V LiPo Stick Battery
- SKU: SBA-HPA-01

Compatibility
- Silverback MDRX AEG
- Dedicated MDRX HPA hop-up chamber
- Accepts standard AEG-type hop-up buckings
- SRS/TAC-41 type buckings recommended by Silverback

Notes
- Users are responsible for complying with local laws and power limits.
- Different nozzle configurations are intended for different output ranges.
- Actual ROF, air consumption and performance depend on pressure, nozzle configuration, BBs, FCU settings and system setup.
